• Wheels, 4 - 16" x 6.5" (40.6 cm x 16.5 cm), 8-lug painted steel, heavy-duty (Only available with (R04) single rear wheel configuration.)
• Tires, front LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Tires, rear LT245/75R16E all-season, blackwall (Requires (R04) single rear wheel configuration. Jack and spare tire equipment bracket are not included.)
• Wheel configuration, rear, single (Not available with (C7N) 12,300 lbs. (5579 kg.) GVWR.)
• Bumper, front painted Black with step-pad (Deleted when (ZR7) Chrome Appearance Package is ordered.)
• Grille, Black composite (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, dual halogen composite
• Flasher, heavy duty light emitting diode (LED)
• Glass, Solar-Ray light-tinted, all windows
• Mirrors, outside delete (Not available with (5Q7) Upfitter option Blank Sail Panel Delete when ordered with (YF2) Ambulance Package.)
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, AM/FM stereo with MP3 player seek-and-scan, digital clock, TheftLock, random select, auxiliary jack and 2 front door speakers (Not available with (U2K) SiriusXM Radio or (YF1) RV Package.)
• 4G LTE Wi-Fi Hotspot capable (Included and only available with (UE1) OnStar. Terms and limitations apply. See onstar.com or dealer for details.)

• Seating arrangement, driver and front passenger high-back bucket includes head restraints and vinyl or cloth trim (Not available with (AJ3) driver-side only frontal airbag.)
• Air conditioning, single-zone manual (Not available with (R6G) air conditioning delete.)
• Seats, front bucket with vinyl trim and head restraints includes inboard armrests (Requires (**W) trim. Not available with SEO (ZP0) delete driver and passenger seats. Includes only driver high-back bucket seat with vinyl trim when ordered with (ZX1) driver-only high-back bucket seating arrangement.)
• Floor covering, Black rubberized-vinyl front
• Warning tones, headlamp on and key-in-ignition
• Oil life monitor
• Theft-deterrent system, vehicle, PASS-Key III
• Power outlet, 120-volt
• Heater and defogger with front and side window defoggers
• Mirror, inside rearview includes Rear Vision Camera display (Included and only available with (UVC) Rear Vision Camera.)
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handles, driver and right-front passenger
• Lighting, interior with dome light and door handle-activated switches
• Chevrolet Connected Access capable (Included and only available with (UE1) OnStar. Subject to terms. See onstar.com or dealer for details.)

• Daytime Running Lamps
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Hill Start Assist
• Airbags, frontal, front driver and right front passenger includes passenger-side frontal airbag deactivation switch (Included with (ZX2) driver and right-front passenger high-back bucket seats or (ZP0) driver and passenger temporary seats. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbags, seat-mounted side-impact for driver and right-front passenger and roof-rail mounted head-curtain side-impact (Included with (C4M) 9900 lb. (4490 kg) GVWR. Available on (JFF) 10100 lb. (4581 kg) GVWR, (C7N) 12300 lb. (5579 kg) GVWR, and (C7I) 14200 lb. (6441 kg) GVWR. Not available with (B3D) School Bus Package, (ANC) Shuttle Bus Package, (YF1) RV Package, and (9T7) right-hand door delete. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Airbag deactivation switch, frontal passenger-side (Not available with (AJ3) frontal, driver-side only airbag. Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar and Chevrolet connected services capable (Not available with (YF2) Ambulance Package or (UXZ) radio provisions only audio system. Included with (FDR) Fleet Daily Rental order types. Terms and limitations apply. See onstar.com or dealer for details.)
• Rear Vision Camera camera and cable shipped loose (Display included with (DRJ) inside rearview mirror.)
• Rear Vision Camera camera and cable shipped loose (Display included with (DRJ) inside rearview mirror.)
• Tire Pressure Monitor System (does not monitor spare tires) (Required with (C4M) 9900 lbs. (4490 kg) GVWR and (R04) single rear 4 - 16" x 6.5" (40.6 cm x 16.5 cm) wheels.)

WORK VAN PREFERRED EQUIPMENT GROUP

• Includes standard equipment

MIRRORS, OUTSIDE MID-STANCE SAIL PANEL MOUNTED

• Provides Velvac convex combination RH and LH outside rear view mirrors that are sail panel mounted with arms that provide a medium stance. Mirrors can be utilized with bodies that are up to 78 inches in width. Mirrors provide a 63.3 sq. inch flat glass positioned over a 30.1 sq. inch convex glass within a common head. Mirrors are shipped loose in vehicle.

FUEL, ADDITIONAL 3-GALLONS

• 3 gallons of fuel in addition to normal assembly plant fill

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM, HEAD RESTRAINTS AND INBOARD ARMRESTS

• Includes only driver high-back bucket seat with Custom Cloth trim when ordered with (ZX1) driver-only high-back bucket seating arrangement. Includes (BA3) engine cover console with swing-out bin.)

REMOTE KEYLESS ENTRY

• with 2 transmitters and remote panic button

DOOR LOCKS, POWER

• with lock-out protection

CONSOLE, ENGINE COVER

• with swing-out storage bin

GVWR, 9900 LBS. (4490 KG)

• (STD) (Includes (R04) single rear wheel configuration.

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

VISORS, DRIVER AND FRONT PASSENGER, VINYL

• in lieu of standard cloth

ENGINE, 6.6L V8

• with Direct Injection and Variable Valve Timing
• gasoline
• (401 hp [299 kW] @ 5200 rpm
• 464 lb-ft of torque [629 N-m] @ 4000 rpm) (Includes external oil cooler.

TRANSMISSION, 6-SPEED AUTOMATIC, HEAVY-DUTY

• electronically controlled with overdrive and tow/haul mode. Includes Cruise Grade Braking
• Powertrain Grade Braking
• and Tap-Up/Tap-Down Driver Shift Control

WHEELS, 4 - 16" X 6.5" (40.6 CM X 16.5 CM), 8-LUG PAINTED STEEL, HEAVY-DUTY

• (STD)

WHEEL CONFIGURATION, REAR, SINGLE

• (STD)

AUDIO SYSTEM, AM/FM STEREO WITH MP3 PLAYER AND USB PORT

• includes seek-and-scan
• digital clock
• TheftLock
• random select
• auxiliary jack and 2 front door speakers

Bluetooth® FOR PHONE

• personal cell phone connectivity to vehicle audio system

THEFT ALARM NOTIFICATION

• requires paid plan
• working electrical system
• cell reception
• GPS signal
• armed GM factory-installed theft-deterrent system
• contact method on file and enrollment to receive alerts. Message and data rates may apply. See onstar.com for details and limitations

TIRES, FRONT LT245/75R16E ALL-SEASON, BLACKWALL

• (STD) Jack and spare tire equipment bracket are not included.)

TIRES, REAR LT245/75R16E ALL-SEASON, BLACKWALL

• (STD) Jack and spare tire equipment bracket are not included.)

POWER CONVENIENCE PACKAGE

• includes (A31) power windows and (AU3) power door locks

DRIVER CONVENIENCE PACKAGE

• includes Tilt-Wheel and (K34) cruise control

CHROME APPEARANCE PACKAGE

• (Includes (V46) front chrome bumper and (V22) chrome grille.

BODY, STANDARD

• (STD)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKET

• includes head restraints and vinyl or cloth trim (STD)

• MEDIUM PEWTER

• CUSTOM CLOTH SEAT TRIM

  SUSPENSION

• REAR MULTI-LEAF IN LIEU OF THE STANDARD TAPERED LEAF

  WINDOWS

• POWER

  AIRBAGS

• SEAT-MOUNTED SIDE-IMPACT FOR DRIVER AND RIGHT-FRONT PASSENGER AND ROOF-RAIL MOUNTED HEAD-CURTAIN SIDE-IMPACT

  EMISSIONS

• FEDERAL REQUIREMENTS

  DIFFERENTIAL

• HEAVY-DUTY LOCKING REAR

  SUMMIT WHITE

  REAR AXLE

• 3.42 RATIO

  CRUISE CONTROL

  STEERING WHEEL

• LEATHER WRAPPED

  OUTSIDE TEMPERATURE DISPLAY

  AUDIO SYSTEM FEATURE

• USB PORT

  TRAILERING PROVISIONS

• TRAILERING WIRE HARNESS ONLY

  TRANSMISSION OIL COOLER

• EXTERNAL

  GRILLE

• CHROME

  BUMPER

• FRONT CHROME WITH STEP-PAD

  STEERING WHEEL CONTROLS

• MOUNTED AUDIO CONTROLS

  PAINT

• SOLID

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4100
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2918
• Curb Weight - Rear (lbs): 1392
• Gross Vehicle Weight Rating Cap (lbs): 9900
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 15000
• Suspension
• Suspension Type - Front: Indep Coil Spring
• Suspension Type - Rear: Multi-leaf
• Spring Capacity - Front (lbs): 4100
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4100
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 35.0
• Shock Absorber Diameter - Rear (mm): 35.0
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 32
• Fuel Tank Location: Mid-frame
• Exterior Dimensions
• Wheelbase (in): 139
• Length, Overall (in): 247.15
• Width, Max w/o mirrors (in): - TBD -
• Height, Overall (in): 83.95
• Overhang, Front (in): 39.7
• Front Bumper to Back of Cab (in): 98.7
• Cab to Axle (in): 80
• Cab to End of Frame (in): 148.45
• Ground to Top of Frame (in): 31.45
• Frame Width, Rear (in): 42
• Ground Clearance, Front (in): 9.05
• Ground Clearance, Rear (in): 8.4
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.85
• Front Leg Room (in): 41.35
• Front Shoulder Room (in): 68.85
• Front Hip Room (in): 65.48
• Summary

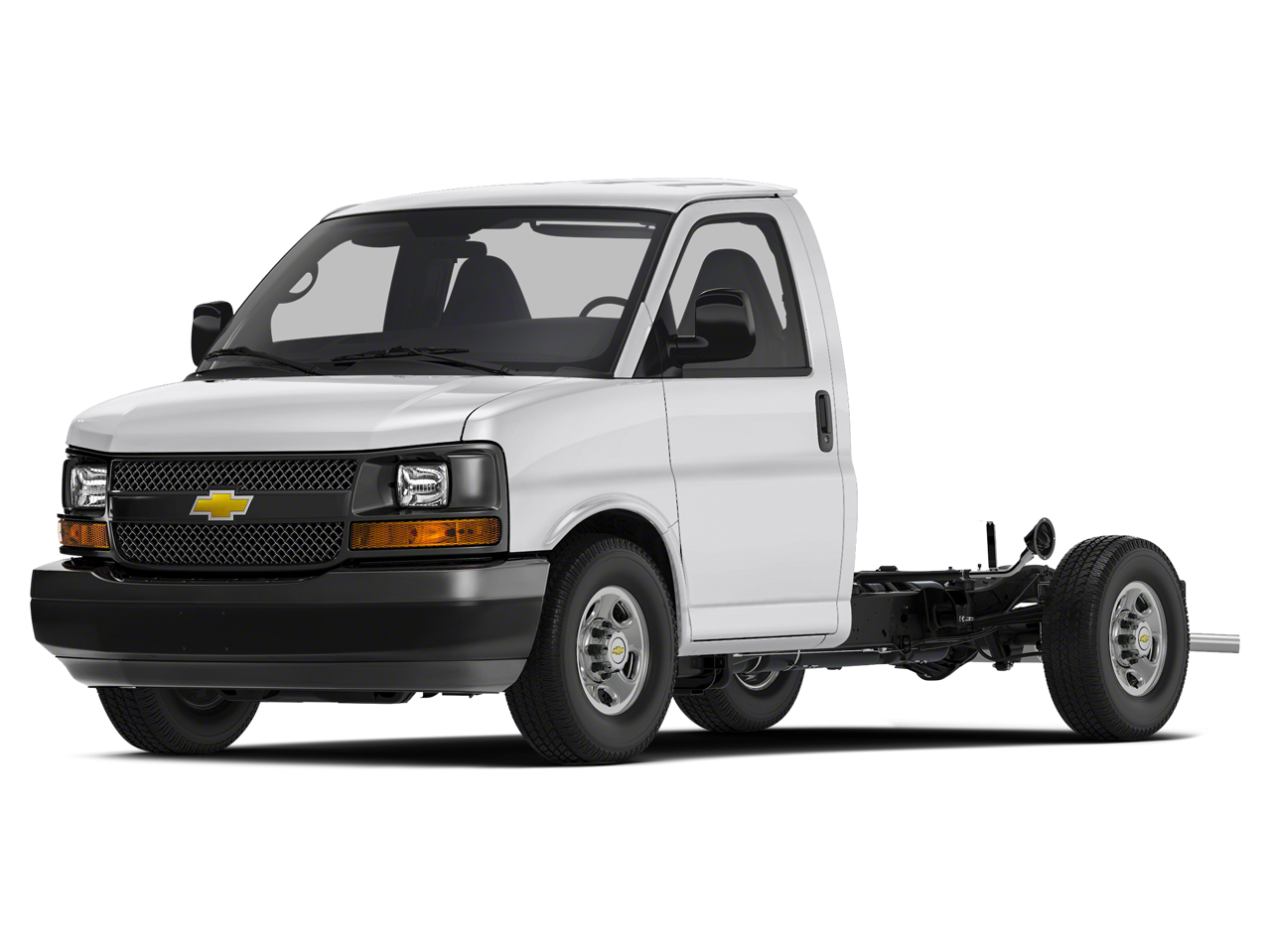

• Vehicle Name: Chevrolet Express Commercial Cutaway
• Body Style: 139.0" WB
• Body Code: ZW9
